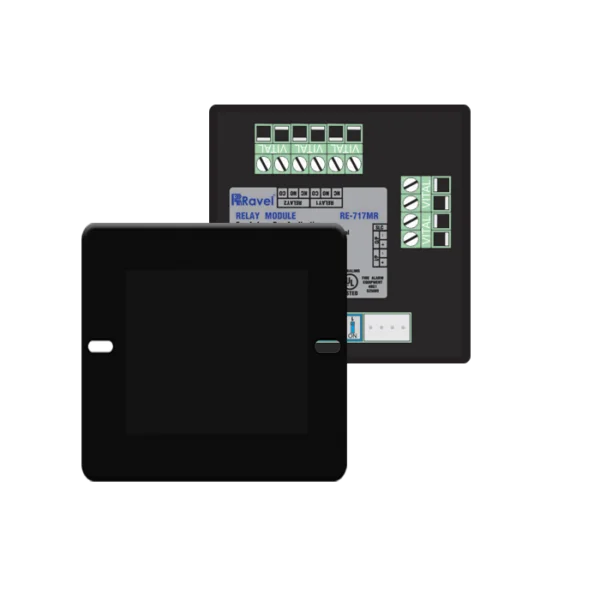

RE-717MR

SPECIAL FEATURES

Indian Manufacturer – International Std.
UL-Listed (9th Edition).
Modular Construction.
FR ABS Enclosure.
Wall / Ceiling mountable.
Module Status by RED LED.
Analogue Communication with the panel.
Module Addressing by 8 way DIP switches.
Dual Potential Free Contact.
Low Standby Current.
Available with suitable back boxes.

Electrical Specification

Operating Voltage	:	24 VDC Nominal
Current Draw	:	2 mA Max.(Latched)
Standby Current	:	0.5 mA
Contact Rating	:	2A @ 30VDC(Resistive)
Temperature Range	:	0°C to 49°C./ 32°- 120°F
Humidity	:	93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F.

Mechanical Specification

Dimensions	:	(95 W X 75 H X 24D) mm
Color	:	Black
Weight	:	0.35 Kg

Compatible Devices

Model	Description
Avani	Analogue Addressable Fire Alarm Control Panel

Ordering Information

Model	Description
RE – 717MR	Analogue Addressable Relay Module

UL listed control relay module with dual potential free contact to integrate with any third party systems having RED coloured LED for status indications with 8 digit Dip switch for address settings.
