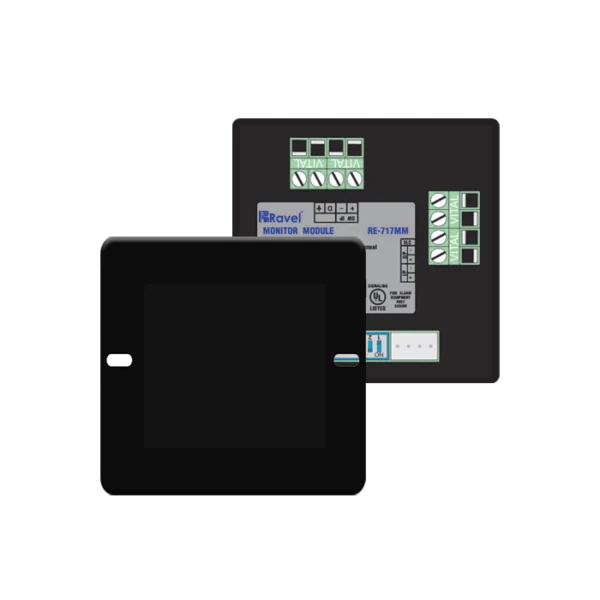

RE-717MM

SPECIAL FEATURES

Indian Manufacturer – International Standard.
UL-Listed (9th Edition).
Modular Construction.
Module Status by RED LED.
Analogue Communication with the panel.
Module Addressing by 8 way DIP switches.
Low Standby Current.
Available with suitable back boxes.

Electrical Specification

Operating Voltage	:	24 VDC Nominal.
Alarm Current	:	2.7 mA Max.(Latched)
Standby Current	:	0.7 mA
End of Line Resistor	:	47K Ohms
Communication Line Loop Impedance	:	40 Ohms
IDC wiring Resistance	:	100 Ohms Max.
IDC Voltage	:	8 V Max.
Temperature Range	:	0°C to 49°C / 32°- 120°F
Humidity	:	93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F.

Mechanical Specification

Dimensions	:	(95 W X 75 H X 24D) mm
Color	:	Black
Weight	:	0.35 Kg

Compatible Devices

Model	Description
Avani	Analogue Addressable Fire Alarm Control Panel

Ordering Information

Model	Description
RE – 717MM	Analogue Addressable Monitor Module

UL listed Monitor Module is applicable to monitor any third party devices integration to monitor the change of state from Normally open to normally close.Having supervisory feature to supervise the circuit connected with third party system having RED colored LED for status indications with 8 digit Dip switch for address settings.

RE-717MM

SPECIAL FEATURES

Electrical Specification

Related products

RE-737MI

RE-337 S

RE-337 SH

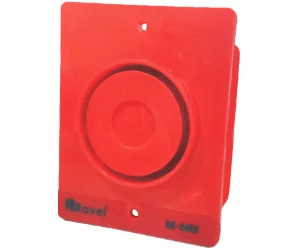

RE-24ES
